Clutch
Clutch Automated Assembly and Testing Line
- Applicable products: P2 hybrid module, clutch, P2 motor

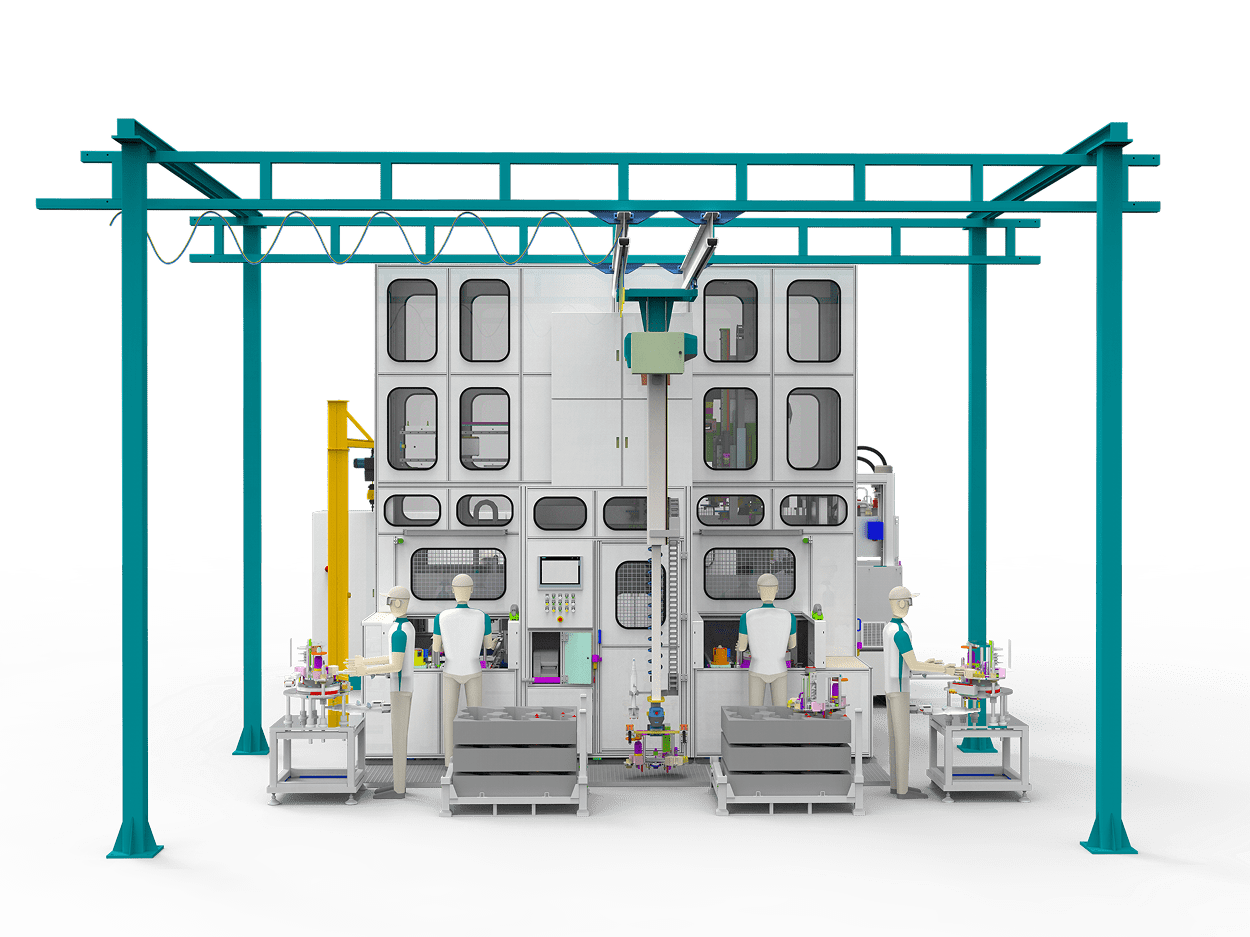

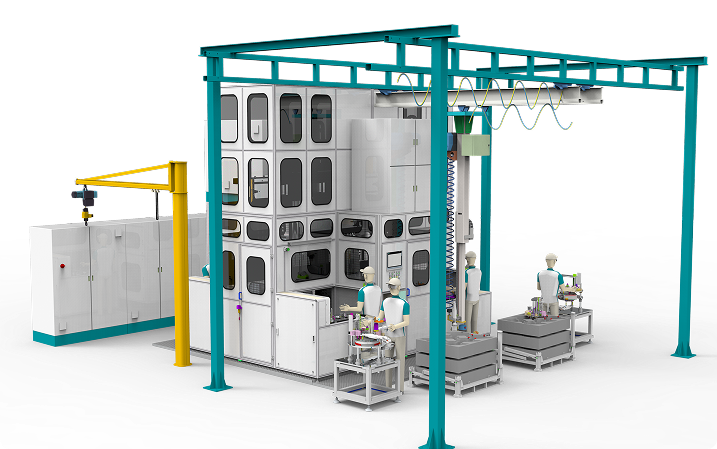

- Hybrid dual-clutch offline test bench: integrates input end, output end, gantry hoisting mechanism, hydraulic station, control system and acquisition and measurement system, equipped with an independent database
- Advantages: complete testing functions, stable structure, small floor space, convenient maintenance
- Digital docking: supports integration with customer's MES system, with key data uploaded in real time
Technical Features
Equipment Style
Real-time Data Collection
Equipped with Hydraulic Station
Stable Mechanical Structure
Transparent PC Board Observation Window
- Horizontal + flip head structure, with a reversible output end, enabling convenient loading and unloading and precise positioning
- Double-layer compact layout, effectively saving floor space
- Real-time monitoring of equipment stability, repeatability and reproducibility, and precise control of core control accuracies such as pressure, torque, and flow rate
- The GRR analysis method is adopted, and the test data can be directly compared with the results from the customer's laboratory
- Realize centralized filtration for both the cooling system and the clutch friction plate drive system, making operation and maintenance more efficient
- The coaxiality between the input shaft and the output shaft is ≤ φ0.02mm
- Cast steel bench, with stable structure and excellent shock absorption performance
- Allows real-time full-angle monitoring of equipment status
Process Section

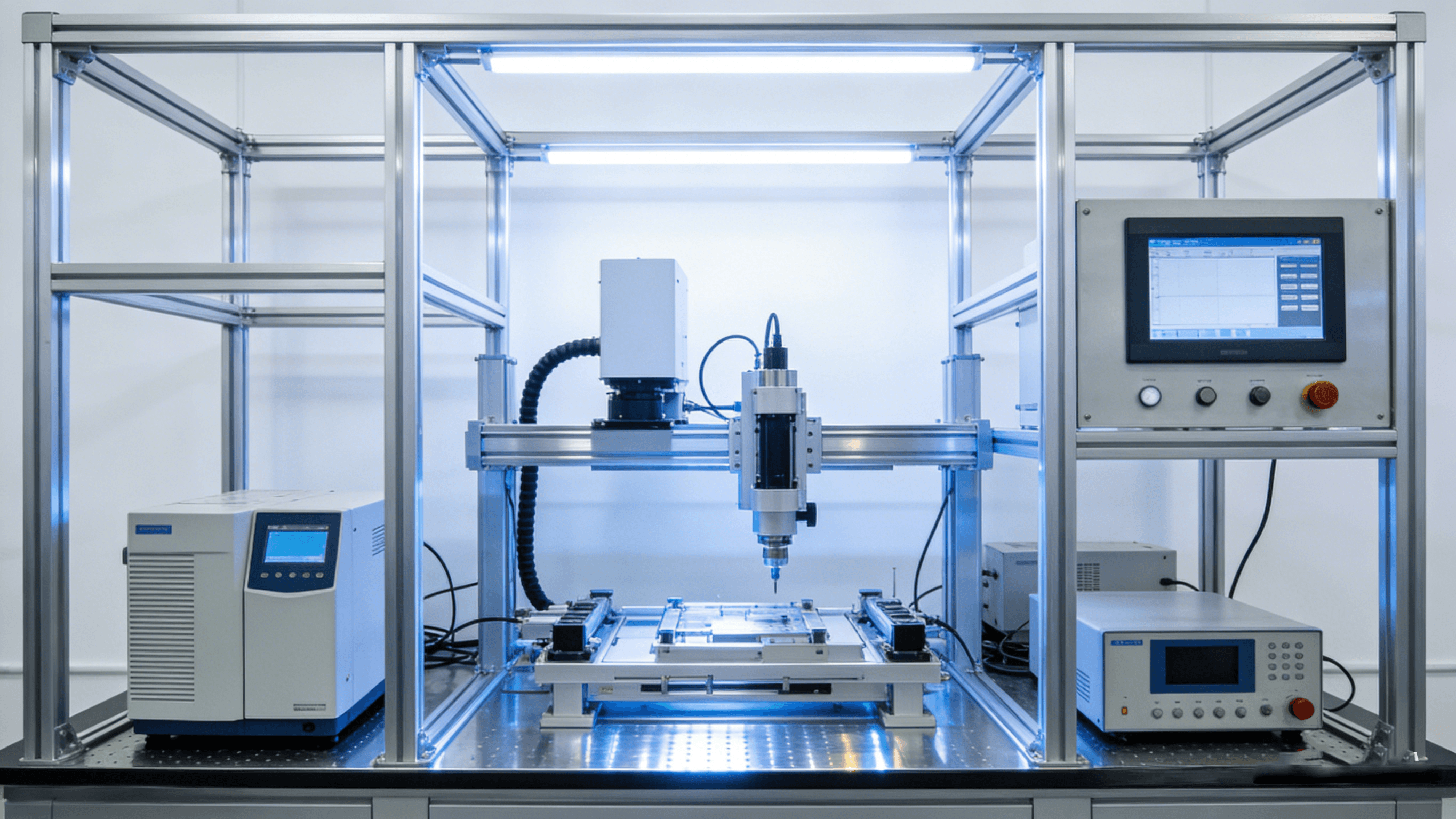

Testing
- Leakage Testing
- Displacement Sensor Inspection
- Visual Inspection
Welding
- Gear Laser Welding
Laser Marking
